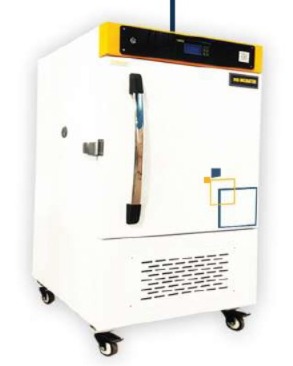

BOD Incubator Shaker (250 Litres)

https://ambinova-technologies-pvt-ltd4.odoo.com/web/image/product.template/86/image_1920?unique=c77f581

Model - AMBI-BOD-IS-250

HSN -  84198990

₹ 0.00 0.0 INR ₹ 0.00 Tax Excluded

₹ 4,43,181.00 Tax Excluded

This combination does not exist.


Brochure/Catalogue:

Description

Incubating shakers enhance cell growth by ensuring consistent mixing and aeration. These devices are versatile and can be utilized for a range of applications, including bacterial, fungal, bacteriophage, and tissue cultures, as well as for the breeding of fish and insects. Typically, they come equipped with a shaking platform and static trays designed for the incubation of plates or flasks. Our advanced counterbalance mechanism ensures uniform rotation across the entire platform.

Furthermore, the operation is remarkably quiet, with a precision of ±5 rpm provided by a brushless DC motor, offering additional advantages. They also include built-in auto-resume features, allowing processes to continue smoothly after any power disruptions.

Key Features

  • Enhanced insulation that enhances chamber stability and minimizes heat load output to the laboratory, thereby reducing operational power consumption and lowering costs.
  • Advanced microprocessor PID control technology guarantees rapid ramp-up times along with comprehensive diagnostic LED indicators.
  • A safety thermostat is included for protection against temperature overshoot.
  • Forced air circulation ensures exceptional temperature stability, yielding prompt and precise results.
  • A BLDC motor is equipped with a manual control knob.
  • There is a dedicated LED display for RPM.
  • Protection features include a short circuit breaker and overload protection.
  • A counterbalance mechanism facilitates uniform movement across all corners.
  • The operation is noiseless.
  • An auto resume feature is also available.

Specifications

  • Capacity  - 250 lit
  • Temp Range (°C) - +5 to 60
  • Temp uniformity (°C) - ± 1
  • Temp accuracy (°C)  - ±0.5
  • RPM  - 50-300
  • Rotation axis - 25 mm
  • Time Range - 9 days 59 min.
  • Glass View Door - Yes
  • Digital Display - Yes
  • Microprocessor Based  - Yes
  • Platform Size ( mm ) - 520 x 520
  • Inner Dimension (W x H x D) mm - 601 x 620 x 635
  • Overall Dimension (W x H x D) mm - 1423 x 864 x 930
  • Packing Dimension (W x H x D) mm - 1728 x 1169 x 1234
  • MOC Internals  - SS304
  • MOC Body - GI powder coated
  • Castor Wheel  - no
  • Height Adjuster (Customized)  - yes
  • MOC SS 304 (Customized  - yes

Flask Capacity With Platform Size

  • Platform size - 520 x 520mm
  • 50ml Flask - 24 nos
  • 100ml Flask - 24 nos
  • 250ml Flask- 24 nos
  • 500ml Flask - 16 nos
  • 1000ml Flask - 8 nos
  • 2000ml Flask – 5 nos
