Description

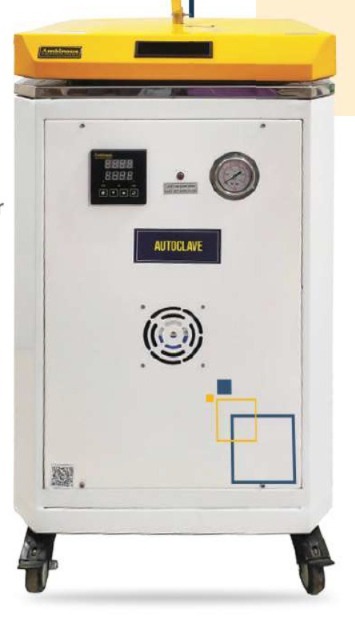

The Eco series by Ambinova comprises a range of autoclaves designed with features specifically aimed at fulfilling the sterilization needs of diverse laboratories. This series incorporates advanced multi-layer safety mechanisms to prevent any undesirable incidents. These sophisticated autoclaves are equipped with premium features to guarantee optimal performance. The distinctive door-locking system of the Eco series facilitates seamless and legs-free operation, while maintaining the highest safety standards and ensuring a leakproof process. The internal insulation encasing the tank provides a consistent temperature with minimal variation throughout the sterilization chamber. Additionally, the internal ventilation system contributes to the long-term reliability of the control unit. The Eco series is suitable for sterilizing nutrient media, culture media, waste materials, instruments, pipettes, glassware, and biohazardous materials. It is effectively utilized for research applications and in GMP-compliant laboratories for the industrial production of culture media, pharmaceuticals, and vaccines.
Features
- Leak-resistant sealing utilizing a high-temperature red silicone gasket.
- Safety valve for high pressure and vacuum relief system.
- SS wire mesh basket.
- Dual LED numerical display.
- Exhaust fan designed for ventilation of the outer chamber.
- Water outlet valves facilitate convenient drainage.
- Caster wheels enable effortless mobility and positioning.
- Automatic purging and exhaust system.
- Distinct single liver door locking mechanism featuring an automatic pin locking system.
- Detection system for low water levels.
- Indicator for door status.
- Facility for automatic cycle resumption.
- Insulation system for the internal tank.
- Heating elements Heating elements for immersion water.
Specifications
- Operating Temperature range : Sterilizing - 121 °C , Warming - 45-95 °C , Purging - Up to 99 °C
- Maximum Operating Pressure - 15 PSI
- Temperature Display – Digital
- Pressure Display – Analogue
- Analog Pressure Gauge Max value - 35 PSI
- Heat Source Load - 2.25Kw
- Safety Devices - *Water Level Sensor *LID Interlock *Over temperature protection *Over Pressure Protection *Pressure Safety Valve
- Time Display – Digital
- Time Range - 0 to 999 Mins
- Chamber Dimension : Dia (mm) x Depth (mm) -350 x 550
- Chamber Busket Dimension - 280 x 450
- Capacity – 50 ltrs
- Outer body material - GI sheet powder coated
- Inner body material - SS 304 sheet
- Gross weight- 60 kgs
- Voltage – 220 va
- Environmental Conditions - Ambient temperature 15 to 45 deg Cel
- Ambient Pressure - Atmospheric
- Relative Humidity - 30 to 70 %
- Tank Size : Internal Dia - 350 MM, Height - 550 MM
- Basket Size : Internal Dia - 280 MM, Internal Height - 450 MM
- Outer dimension - Height - 1049 mm, Width - 530 mm, Depth - 575 mm
- Shipping dimension - Height - 1,354 mm, Width - 835 mm, Depth - 880 mm
